Labotronic HE
The batch freezer manages a range of quantities from a minimum of 1.5 kg to a maximum of 7.5 kg per cycle
Available models: Labotronic 10 45 HE and HE-H, Labotronic 15 60 HE and HE-H, Labotronic 20 90 HE and HE-H, Labotronic 25 110 HE and HE-H.
- ✓Hard-O-Dynamic® Adaptive: smart freezing tailored to every batch
- ✓High Efficiency: up to 30% less electricity and water
- ✓Excellent program: creamy, scoopable gelato with long display life
- ✓Speed program for fast, dry gelato in peak season
Explore all 37 technologies ↓Free showroom demo ↓
Call us 0508 625 677
Catalogue
Key specifications

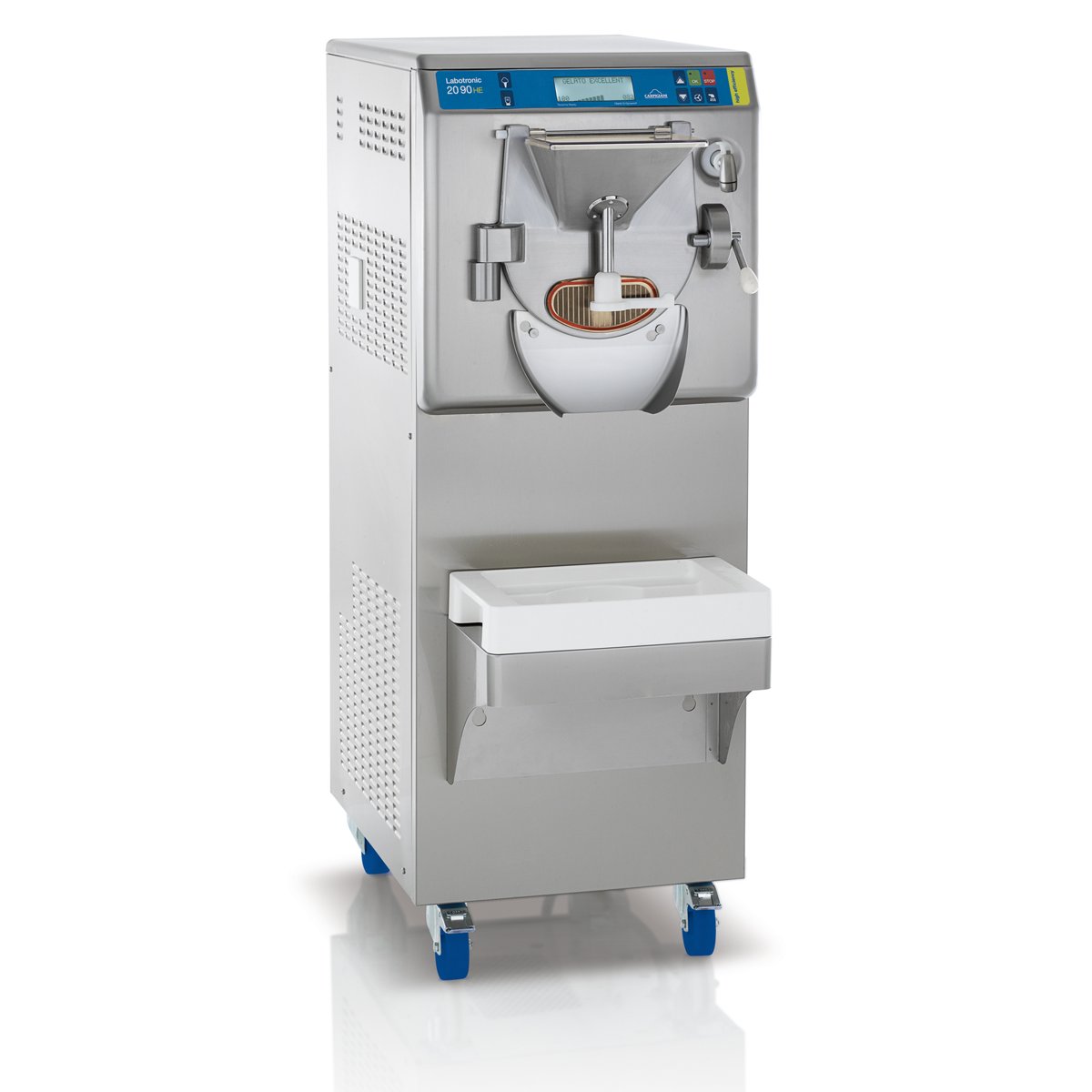

The Carpigiani Labotronic HE is a batch freezer. It runs on 400 V three phase.
- Quantity per batch10/45: 1.5–7.5 kg; 15/60: 2.5–10.5 kg; 20/90: 3.5–13 kg; 25/110: 4.5–17 kg
- Gelato produced10/45: Hourly amount: 12–63 L; 15/60: Per cycle: 3.5–15 L; Hourly amount: 21–84 L; 20/90: Per cycle: 5–19 L; Hourly amount: 28–135 L; 25/110: Per cycle: 6.5–24 L; Hourly amount: 35–152 L
- CoolingWater Cooling
- Power supply400 V / 50 Hz / 3 Ph
- Rated power10/45: 6.4 kW; 15/60: 7.6 kW; 20/90: 9 kW; 25/110: 11 kW
- Fuse10/45: 16 A; 15/60: 20 A; 20/90: 25 A; 25/110: 32 A
- Dimensions15/60: 52 × 65 × 140 cm; 20/90: 52 × 65 × 140 cm; 25/110: 52 × 85 × 140 cm
- Net weight15/60: 320 kg; 20/90: 345 kg; 25/110: 420 kg
Figures are the manufacturer’s published specifications.
Carpigiani Labotronic HE: The batch freezer manages a range of quantities from a minimum of 1.5 kg to a maximum of 7.5 kg per cycle
Available models: Labotronic 10 45 HE and HE-H, Labotronic 15 60 HE and HE-H, Labotronic 20 90 HE and HE-H, Labotronic 25 110 HE and HE-H.
The indispensable batch freezer for your Gelato shop: many programs with just the touch of a button! Labotronic HE H features High-Efficiency technology that brings the best performance of the Gelato batch freezing cycle. Up to 30% electricity and water consumption savings compared to the same volume produced with the RTX range and previous line. It includes the Crystal program which is ideal for creating monoportions of all shapes with molds and takeaway frozen cakes and Gelato products.
Thanks to the Hard-O-Dynamic® Adaptive system, the machine automatically recognises the quantity and type of mixture, and dynamically modulates the cold and hot gas to optimise the heat exchange during freezing.
There are also 2 programs with heating capabilities: allowing the user to prepare liquid mixtures, by mixing, heating and even pasteurising all in the same cylinder.
Technology & features
What the Labotronic HE does for you
42 features in 6 groups. The tabs change by themselves until you choose one.
Hard-O-Dynamic® Adaptive (H.O.D.)
Carpigiani’s patented system recognises mix type and quantity and dynamically modulates cold and hot gas, so each batch reaches the chosen consistency without changing time, temperature or beater speed.
HE High Efficiency technology
An exclusive algorithm controlling thermostatic valves, efficient motors and new condensers maximises freezing efficiency, cutting energy and water use by up to 30% versus RTX or earlier models.
Post-cooling
Cold is injected as gelato leaves the cylinder so the consistency holds right to the last portion.
Shaftless beater with POM blades and self-adjusting scrapers
The beater has no central shaft; its POM blades resist the cold and aid full extraction, while self-adjusting scrapers keep the cylinder clean and efficient.

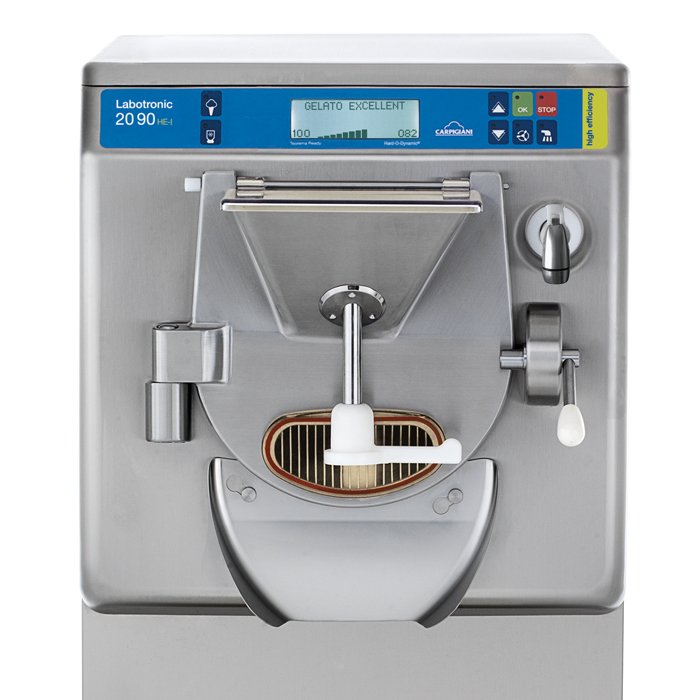

LCD display with live consistency tracking
During freezing the display shows the program name, current consistency, a bar chart of hardening and the target consistency, which can be changed at any time.
Controls accessible with hopper open
All commands stay available with the hopper cover open, so production can begin while mix is being added.
Gelato Excellent program
Produces soft, creamy, well-structured gelato that holds in the display case for a long time and handles much smaller batch sizes.
Gelato Speed program
A fast cycle producing consistent, dry gelato ready for the blast freezer, ideal when the machine runs at full capacity.
Gelato Hard program
Produces more compact, dense and stable gelato that can go straight into the display case if there is no time for blast freezing.
Gelato Simply program
Operators choose Gelato Cream, Gelato Fruit or Fruit Ice and the machine handles the rest, so less experienced staff can produce gelato.
Gelato Crystal program
Produces milk- or fruit-based Crystal, a semi-dense gelato that is easily shaped into desserts and becomes gelato once frozen.
Fruit Cremolata program
Uniformly crystallises water, fruit and sugar into a fresh, thirst-quenching treat.
Customisable menu
The menu can be set to display only the programs you use most often.
Automatic defrost after power loss
If power fails or the machine stops accidentally, an automatic defrost procedure runs so production can restart quickly.
Delayed cleaning program
Cylinder temperature is controlled after extraction, so the machine need not be washed straight away during extended breaks.
Heated cylinder washing
The cylinder surface is heated during washing to quickly loosen and melt fat residues.
Carpi Care kit and Carpi Clean kit
Dealer-supplied kits to keep the machine hygienically perfect.
Gelato Zero+ and Sorbetto Zero+
Cycles designed for low-solids recipes, averaging a 40% reduction in sugars, fats and other solids compared with traditional formulations.
Single-piece cylinder and front panel
Joining the cylinder and front panel into one piece removes gaps where condensation and ice could shorten machine life.
Removable extraction chute
The chute detaches so all gelato residue can be removed.
Front-mounted lockable sprayer
The sprayer sits on the front panel for easy cleaning of cylinder and chute and can be locked in place.
Shelf mat
Designed to keep small and large trays and tubs in place during extraction.
Scotch-Brite finish
Treated stainless steel panels resist staining and fat residues, making them quick to clean.
Stainless steel wheels
New stainless steel wheels tolerate regular washing even with strong detergents.
Ergonomic design
Mix loading and gelato extraction are done standing straight, and corners are more rounded where the operator works to reduce injury risk.
QR code equipment information
Scanning the front QR code opens the latest instruction manual and Carpi Care and Carpi Clean kit information.
Optional
H – Heating (hot gas technology)
Carpigiani’s exclusive hot gas option lets the batch freezer heat, pasteurise, age and freeze the mix, offering versatility and energy savings compared with other heating methods.
Optional
I – Inverter
An inverter option expands the program list with Gelato Garnish, Gelato Manual and Sicilian Slush and enables variable beater speed.
Optional
Comfort variegation
With the inverter, beater speed is slowed until output pauses so topping can be spread, then increased to resume flow, all without closing the door.
Optional
Gelato Garnish program
Freeze the batch, extract part into the tray and keep the rest at consistency in the cylinder while you add a filling layer.
Optional
Gelato Manual program
The operator can vary beater speed during the cycle to manage freezing manually.
Optional
Sicilian Slush program
The beater turns slowly to make traditional slushes without emulsifying the product.
Optional
Ice Cream program with 3E beater
A dedicated program and the new stainless steel 3E beater allow Ice Cream production on all models; the beater is also sold as a spare part.
Optional
Crystal Dispensing Door with spacer
A dedicated door for the Crystal program fills containers directly; a fit-anytime spacer narrows the opening for easier extraction and washing.
Optional

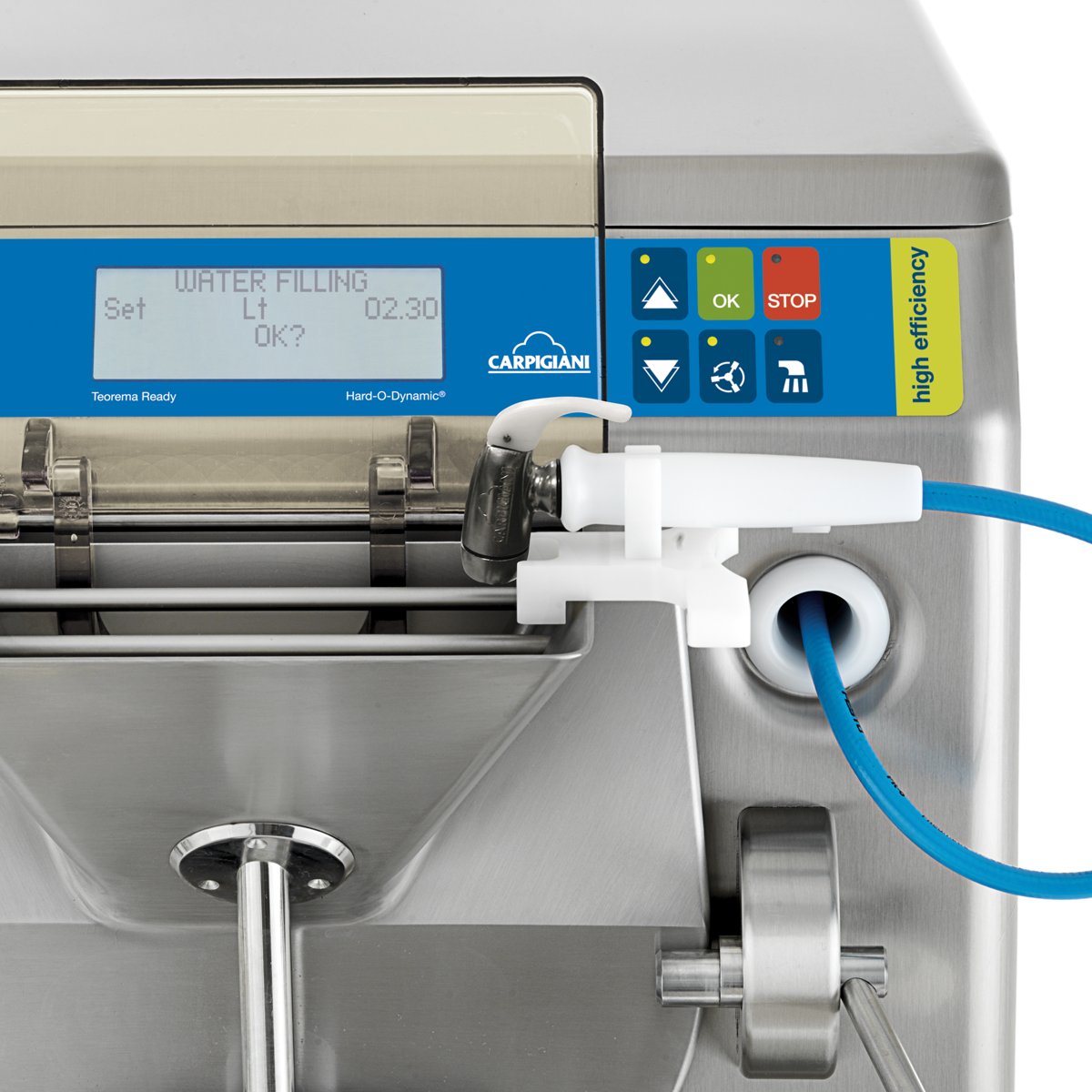

Water Filling function
Delivers the precise amount of water needed for recipes or cleaning, saving time and preventing dosing errors.
Optional
Easy way: in-machine mix preparation and pasteurisation
With the heating option the mix can be prepared and pasteurised directly in the batch freezer.
Optional
Teorema
Internet-based monitoring and diagnosis via PC, tablet or smartphone make assistance easier and help keep production running.
Optional extras can be added to your order or, for most items, fitted later. All Carpigiani options and accessories →
Quality
- Just one button, Just one button for many programs.: Gelato Excellent, Gelato Speed, Gelato Hard, Gelato Simply, Gelato Zero+, Sorbet Zero+, Gelato Crystal, Gelato Hot, Gelato Hot Age, Gelato Hot&Cold, Fruit Cremolata.
Performance
- Self-regulating scraper blades for constantly cleaning the cylinder and maximising yield.
Convenience
- Tray-lock mat facilitates extraction and variegation.
Savings
- Carpigiani’s High Efficiency technology allows a reduction in production time and the consumption of electricity and water up to 30% compared to Carpigiani batch freezers of previous generations (30% compared to rtx models).
Hygiene
- One-piece cylinder for maximum cleanliness and guaranteed hygiene.
- Hot wash, detachable extraction chute and Scotch-Brite treatment of the steel sheet metal facilitate cleaning.
See the Labotronic HE in action
Add the Crystal dispensing door to your Carpigiani Labotronic HE
The Carpigiani Labotronic HE is Crystal-enabled. With the optional Crystal dispensing door, it fills moulds, gelato cakes and take-away tubs straight from the cylinder with high-overrun gelato and sorbet, using your existing recipes. Order it with a new machine or add it later as a spare part.
Pair your Carpigiani Labotronic HE with a Techfrost blast freezer
A Techfrost blast freezer hardens fresh batches quickly, so gelato forms small ice crystals, stays smooth and lasts longer in the cabinet. Gelato hardening from −10 °C to −18 °C takes about 15 minutes, and blast chilling from +90 °C to +3 °C about 90 minutes. Ideal for gelato cakes, moulded desserts and take-away tubs.
All Techfrost blast freezers · Call 0508 625 677 to size the right model.
Everything to make and sell gelato with your Carpigiani Labotronic HE
Pair your batch freezer with Rubicone bases, flavours, ripples and toppings, a Carpigiani pasteuriser, a Techfrost blast freezer and an ISA or BRX showcase. We also run training.
Buying from Majors Group
Your Labotronic HE, supplied and supported in New Zealand
- Demo and trainingSee the Labotronic HE run at a free showroom demo, then get one-on-one training on your machine, its programs and recipes.Demo, training and support →
- Trade in and upgradePut the value of your current machine towards the Labotronic HE, with finance to spread the cost.Talk to us about a trade-in →
- Service and consumablesGenuine Carpigiani parts, Carpi Care and Carpi Clean kits, preventive maintenance and repairs by our technicians.Service →
- FinanceRent-to-buy, lease and equipment finance for the whole set-up.Finance options →
Request a quote or call 0508 625 677
Technical Specifications
Engineered for performance, built to last. Every detail is designed for commercial excellence.
| Power Supply | 400v / 50hz / 3Ph |
|---|---|
| Cooling System | Water Cooling |
| Quantity per Batch | 10/45: 1.5–7.5 kg; 15/60: 2.5–10.5 kg; 20/90: 3.5–13 kg; 25/110: 4.5–17 kg |
| Mix Added | 10/45: Hourly amount: 10–45 kg; 15/60: Hourly amount: 15–60 kg; 20/90: Hourly amount: 20–90 kg; 25/110: Hourly amount: 25–110 kg |
| Gelato Produced | 10/45: Hourly amount: 12–63 L; 15/60: Per cycle: 3.5–15 L; Hourly amount: 21–84 L; 20/90: Per cycle: 5–19 L; Hourly amount: 28–135 L; 25/110: Per cycle: 6.5–24 L; Hourly amount: 35–152 L |
| Programs (quantity per cycle) | 10/45: Cremolata 3.5–7.5 kg; Crystal 3.5–7.5 kg; Granita 3.5–7.5 kg; Zero+ 1.5–6.5 kg; 15/60: Cremolata 5–10.5 kg; Crystal 5–10.5 kg; Slush 10.5 kg; Zero+ 2.5–9.5 kg; 20/90: Cremolata 6–13 kg; Crystal 6–13 kg; Slush 6–13 kg; Zero+ 3.5–12 kg; 25/110: Cremolata 7–17 kg; Crystal 7–17 kg; Slush 7–17 kg; Zero+ 4.5–16 kg |
| Rated Power Input | 10/45: 6.4 kW; 15/60: 7.6 kW; 20/90: 9 kW; 25/110: 11 kW |
| Fuse Size | 10/45: 16 A; 15/60: 20 A; 20/90: 25 A; 25/110: 32 A |
| Fuse Size (with inverter) | 10/45: 16 A; 15/60: 20 A; 20/90: 20 A; 25/110: 25 A |
| Dimensions (W x D x H) | 15/60: 52 x 65 x 140 cm; 20/90: 52 x 65 x 140 cm; 25/110: 52 x 85 x 140 cm |
| Net Weight | 15/60: 320 kg; 20/90: 345 kg; 25/110: 420 kg |
