Key specifications
The Isetta Ice Cream Display Cabinet is a gelato display cabinet that has space for 6, 10 or 11 tubs. It runs on 240 V single phase and draws 300 W (2.3 A), measures 93.4 × 87.9 × 113.2 cm and weighs 87 kg.
- Tubs6 / 10 / 11 Tubs
- CompressorHermetic
- RefrigerantR290
- DefrostElectric
- Electrical Input300 W / 2.3 A
- Power supply240 V / 50 Hz / 1 Ph
- Dimensions93.4 × 87.9 × 113.2 cm
- Net weight87 kg
Figures are the manufacturer's published specifications.

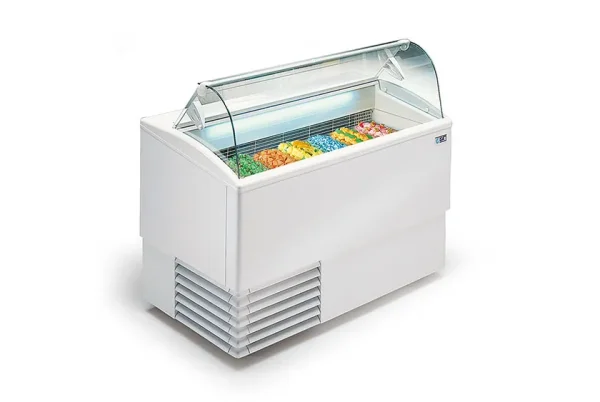

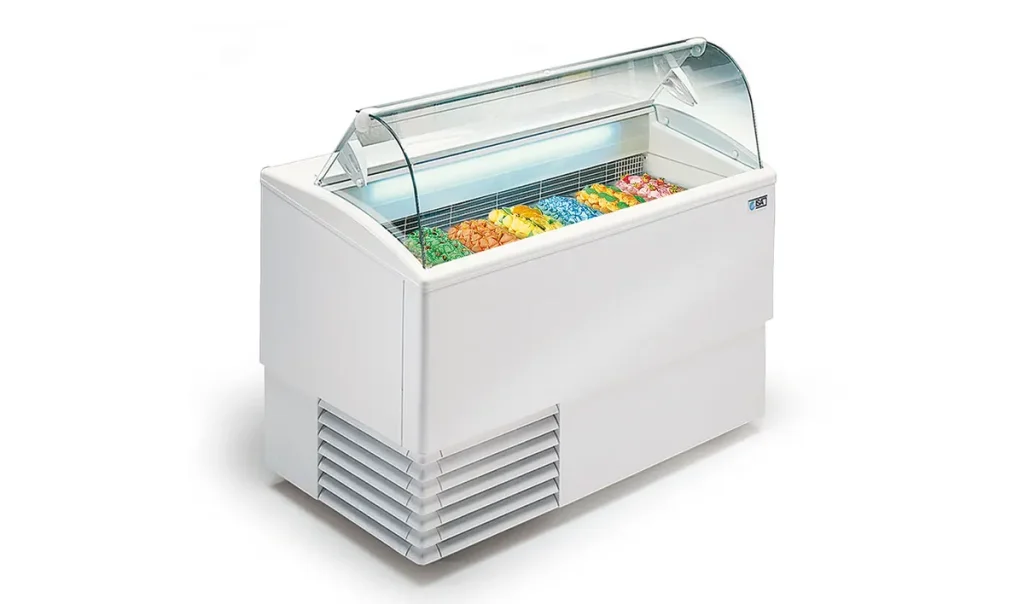

About the Isetta
Isetta is ISA’s compact static ice cream cabinet: a finned evaporator, automatic electric defrost and a one-piece insulated body in a footprint that fits a cafe or kiosk counter.

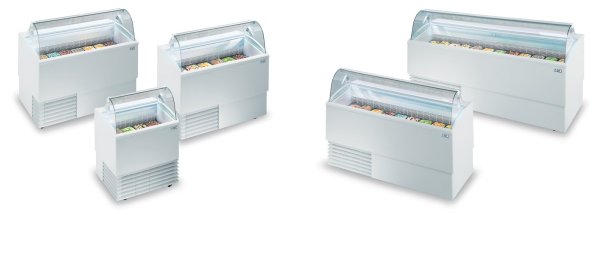

It is 117 cm high and comes in widths from 82 to 212 cm, holding 4 to 11 pans, with straight (ST) or curved (LX) glass. The TP version is rated for climate class 7.
What makes the Isetta different

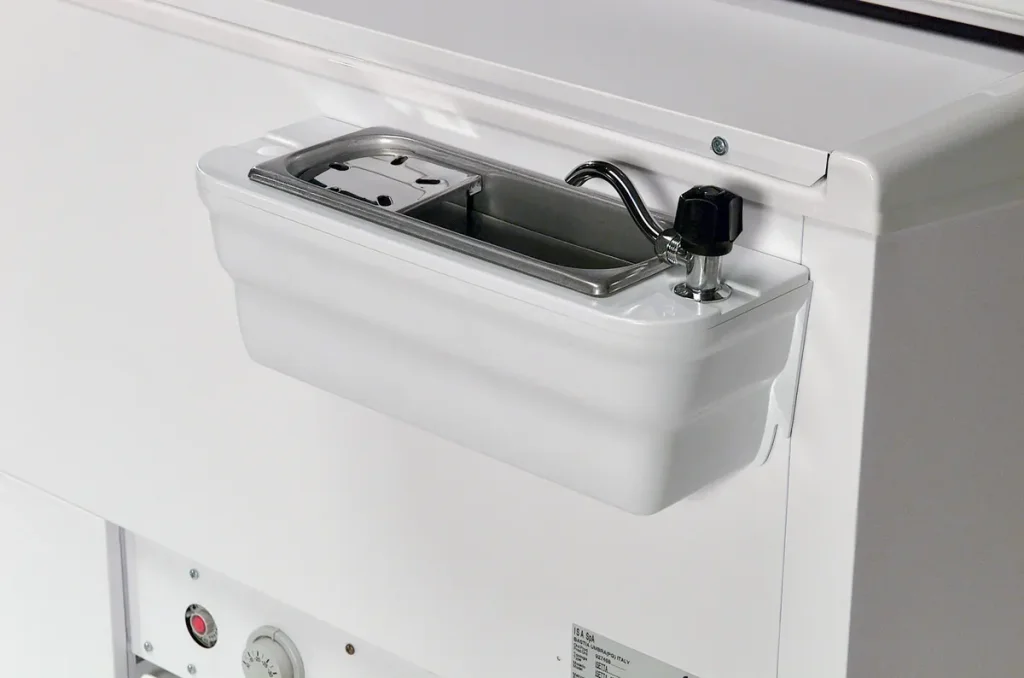

Compact static cabinet, ST or LX glass

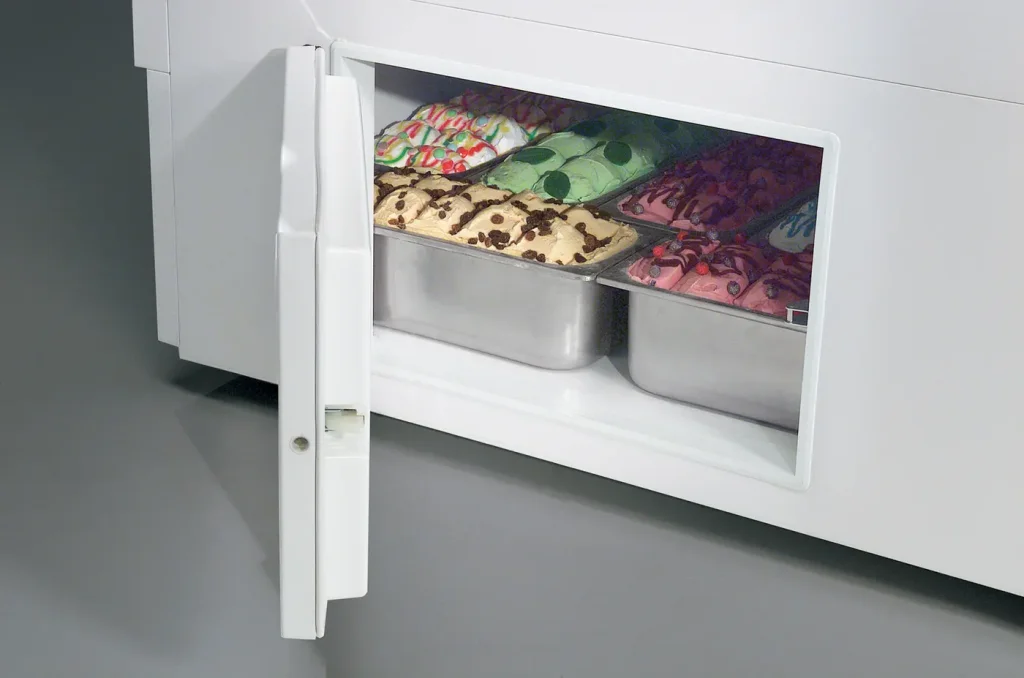

Static refrigeration with a finned evaporator and automatic electric defrost. One-piece body with CO2-blown, HCFC- and HFC-free insulation and plastic-coated steel inside and out. A double level of 120 mm pans can be fitted, with a static storage cell below (except the Isetta 4). Tempered glass in ST (straight) or LX (curved) form, a rear pivoting methacrylate panel on the operator side, LED-lit worktop and built-in hermetic condensing unit with electronic control. The TP version works in climate class 7 (35 °C, 75% RH).
Versions and sizes
Figures are ISA’s published versions. Not every version is stocked in New Zealand; ask us which sizes are available and the lead time for the rest.
| Version | Height (cm) | Length (cm) |
|---|---|---|
| Isetta/Punto ST 6R P80 | 117 | 118 |
| Isetta/Punto ST 7R P80 | 117 | 135 |
Get the Isetta catalogue
Tell us where to send it and we will email you the PDF, with related and new products picked for you.
Isetta questions
What sizes does the Isetta come in?
Widths of 82, 118, 135, 166 and 212 cm at 117 cm high, holding from 4 to 11 pans, in ST or LX glass versions.
Is the Isetta static or ventilated?
Static, with a finned evaporator and automatic electric defrost, at a product temperature of -16/-10 °C.
Does the Isetta work in hot rooms?
The TP version is rated for climate class 7 (35 °C and 75% humidity).
