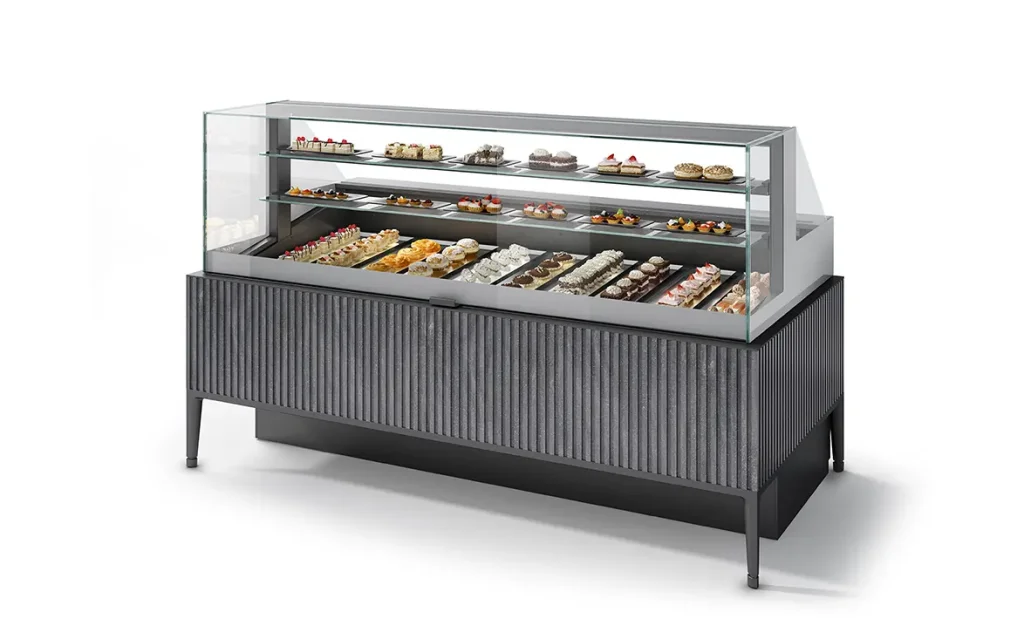

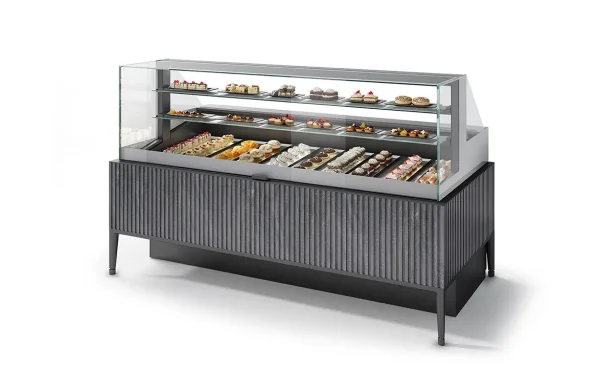

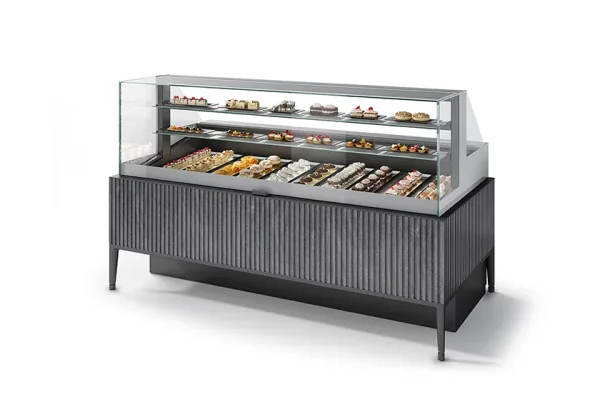

About the Pentagram Display Pastry
Pentagram Display Pastry is the pastry version of the Pentagram Display, designed by Antonio Citterio for ISA. It has raised trays, continuous LED light and heated glass, with a touch-screen control panel.
It comes in two heights (117 and 135 cm) and three lengths plus the corner, and channels with other ISA gelato and pastry cabinets without side dividers. Front panels can be customised in Solid Surface, hardwood or painted MDF.
What makes the Pentagram Display Pastry different
Raised trays, LED light and heated glass
Trays sit in a raised position with continuous LED light, and the three ventilation options give three ways to present the gelato. Double-heated side glass and a heated, laminated front glass keep the panes clear in demanding conditions.
Lift-up glass and a double drain
The front glass lifts upward on a handle with a safety lock for full access to the well. A double 1-inch drain in the base keeps cleaning simple and outside odours out. The rear cover gives quick access to the condensing unit, even with a platform fitted.
Continuous linear runs
Pentagram Display joins in continuous linear runs with other ISA gelato and pastry cabinets without side dividers. Two heights, 117 and 135 cm, three lengths and a corner module channel together, and the shelves line up across the run.
Touch-screen control panel
An electronic control panel with a digital touch-screen display sets temperature and lighting.
Full Mode cold-air distribution
In Full Mode, cold air is distributed through the whole display area, including the shelves. The operator switches between unrefrigerated and Full Mode with one button to match the day’s workload.

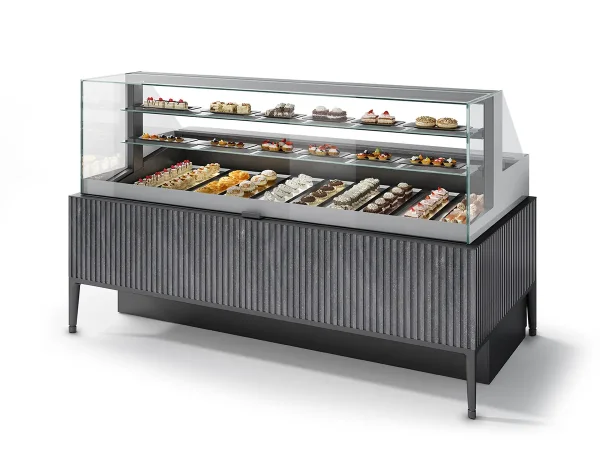

Front panels by Antonio Citterio
The Pentagram collection, designed with Antonio Citterio, offers front panels plain or with four milling patterns in Solid Surface, hardwood or painted MDF.
Full Mode
In Full Mode, cold air is distributed through the whole display area, including the shelves, at the press of a button.
R290 dual-circuit refrigeration
The refrigeration unit runs on R290, a natural refrigerant, with a hermetic compressor and reverse-cycle defrost. ISA quotes 30% less vibration and noise than its R404A models and up to 10% lower energy use. Cyclopentane insulation performs about 20% better than conventional foam, which helps the cabinet hold climate class 7 (35 °C and 70% humidity).
Versions and sizes
Figures are ISA’s published versions. Not every version is stocked in New Zealand; ask us which sizes are available and the lead time for the rest.
| Version | Refrigerant | Height (cm) | Length (cm) |
|---|---|---|---|
| Pentagram Display Pastry | R290 | 117 | 170 |
| Pentagram Display Pastry | R290 | 117 | 220 |
| Pentagram Display Pastry | R290 | 135 | 120 |
| Pentagram Display Pastry | R290 | 135 | 170 |
| Pentagram Display Pastry | R290 | 135 | 220 |
Pentagram Display Pastry technical data
ISA publishes the full technical data and options for this model. Ask us for the details that apply to your layout, power supply and delivery.
Pentagram Display Pastry questions
What heights and lengths does the Pentagram Display Pastry come in?
Two heights, 117 and 135 cm, and three lengths plus the corner module. All of them channel together.
Can the front panels be customised?
Yes. ISA offers plain panels or four milled finishes in Solid Surface, hardwood or painted MDF.
How is the pastry version defrosted?
By stopping the compressor, rather than the reverse-cycle defrost used in the gelato version.
