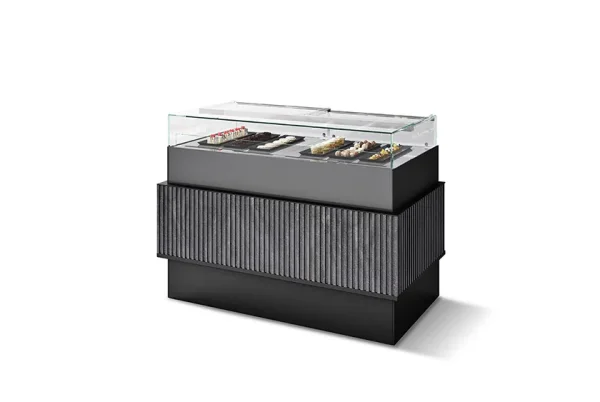

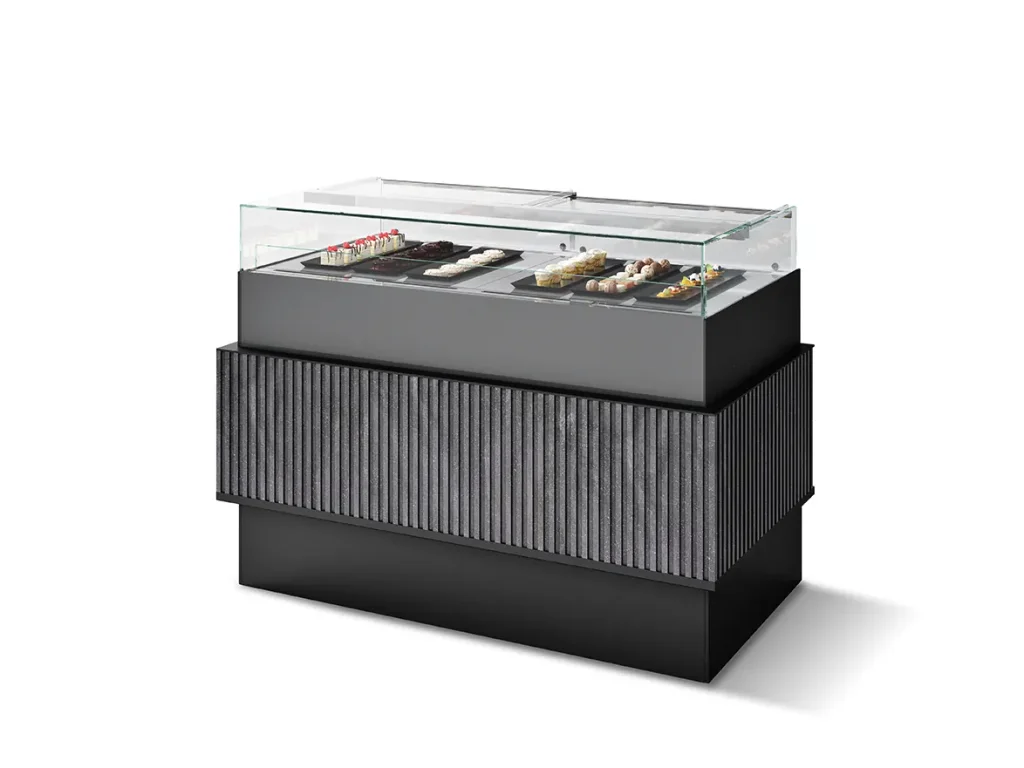

About the Pentagram Beta
Pentagram Beta is a flat-display counter cabinet in the ISA Pentagram collection. It lines up visually with the rest of the Pentagram bar-counter range and suits fresh product, pastry, chocolate and beverages.
It is available plug-in or remote, in linear lengths from 100 to 200 cm in 25 cm steps, and as a 150 cm left or right end unit. The outside and the well can be customised in high-end materials.
What makes the Pentagram Beta different

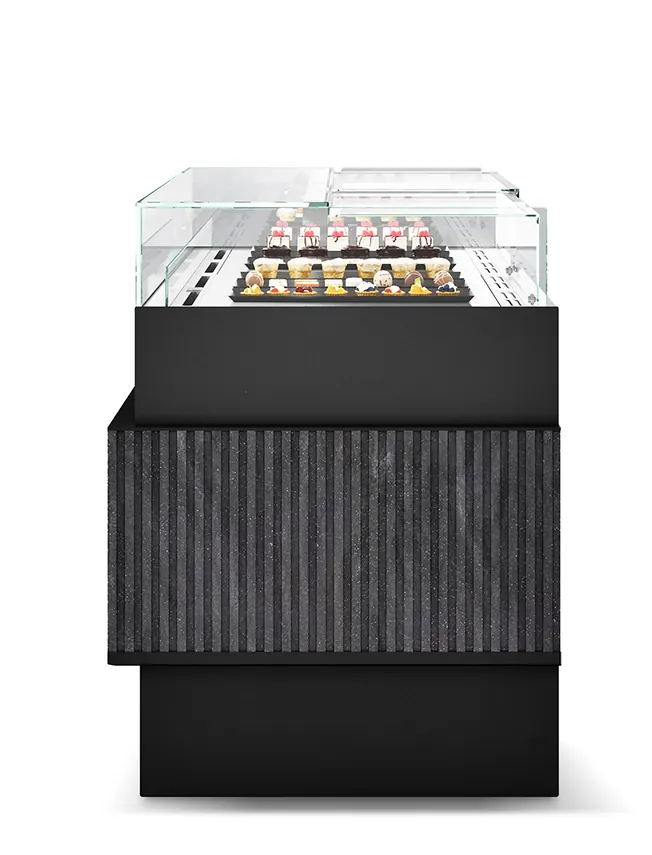

A continuous Solid Surface display
The flat display shows even small products well, on a continuous Solid Surface that can be customised on the outside and inside the well. Shelves adjust to three positions at a 20 mm pitch and take 60 x 40 cm trays (trays not supplied).
Ventilated chiller, chocolate chiller or hot plate
The ventilated chiller (TN RV) runs +4 to +8 °C with off-cycle defrost for fresh product, pastry and beverages. The chocolate chiller (TN RV CH) holds +14 to +16 °C with a humidity probe and control kit, aimed at keeping chocolate below 50% relative humidity. A dry heated version (TC S) has a ceramic hot plate adjustable up to 80 °C.
Glued extra-clear glass and sliding doors
Extra-clear glued glass with LED lighting and polycarbonate sliding doors on the operator side.
Versions and sizes
Figures are ISA’s published versions. Not every version is stocked in New Zealand; ask us which sizes are available and the lead time for the rest.
| Version | Refrigerant | Height (cm) | Length (cm) |
|---|---|---|---|
| Pentagram Beta 125 | R290 | 117 | 125 |
| Pentagram Beta 150 | R290 | 117 | 150 |
| Pentagram Beta 175 | R290 | 117 | 175 |
| Pentagram Beta 200 | R290 | 117 | 200 |
Pentagram Beta technical data
ISA publishes the full technical data and options for this model. Ask us for the details that apply to your layout, power supply and delivery.
Pentagram Beta questions
What lengths does the Pentagram Beta come in?
Linear versions run from 100 to 200 cm in 25 cm steps, plus a 150 cm left or right end version. It is available plug-in or with a remote unit.
Can the Pentagram Beta display chocolate?
Yes. The chocolate chiller version holds +14 to +16 °C with humidity control, aimed at keeping chocolate and pralines below 50% relative humidity.
What size trays does it take?
Shelves adjust to three positions at a 20 mm pitch and take 60 x 40 cm trays. Trays are not supplied.
