Carpigiani Synthesis
Modular units that produce gelato and store it in the same cylinder, ready to serve. Choose one cylinder or two.
Carpigiani Synthesis models
Every model has its own page with full features, specifications and photos. Select a model to see it in detail.
Each Synthesis model
Synthesis 1
Single cylinder module to produce and statically store 1.5 to 2.5 kg of gelato.
Power Supply: 230v / 50hz / 1Ph
Cooling System: Air Cooling
Cylinder Capacity: max g: 2.5 kg; min g: 1.5 kg
Rated Power Input: 1.25 kW
Fuse Size: 6 A

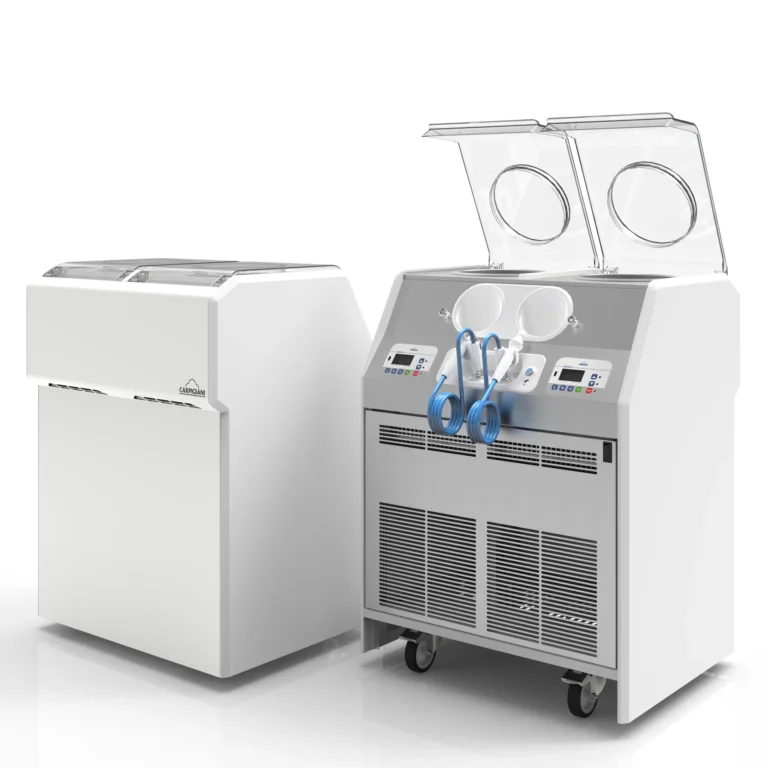

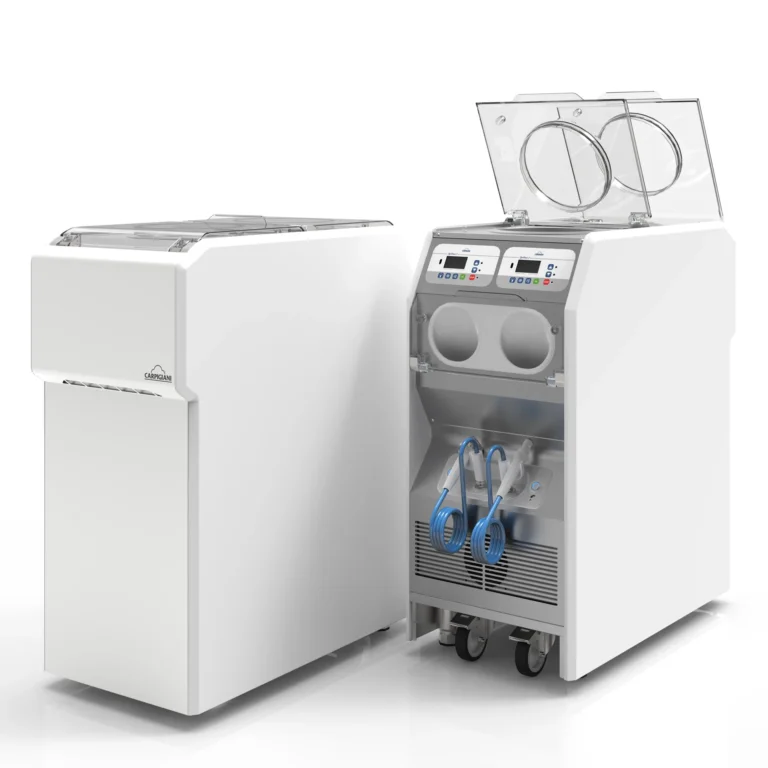

Synthesis 2
A modular unit with two cylinders positioned one in front of the other. Each cylinder can produce and statically store 1.5 to 2.5 kg of gelato.
Power Supply: 230v / 50hz / 1Ph
Cooling System: Air Cooling, Water Cooling
Cylinder Capacity: max g: 2.5 kg; min g: 1.5 kg
Rated Power Input: 2.5 kW
Fuse Size: 13 A
Synthesis specifications
| Specification | Synthesis 1 | Synthesis 2 |
|---|---|---|
| Power Supply | 230v / 50hz / 1Ph | 230v / 50hz / 1Ph |
| Cooling System | Air Cooling | Air Cooling, Water Cooling |
| Cylinder Capacity | max g: 2.5 kg; min g: 1.5 kg | max g: 2.5 kg; min g: 1.5 kg |
| Rated Power Input | 1.25 kW | 2.5 kW |
| Fuse Size | 6 A | 13 A |
Specifications are listed on each model’s page. Ask our team to confirm the right model for your site.

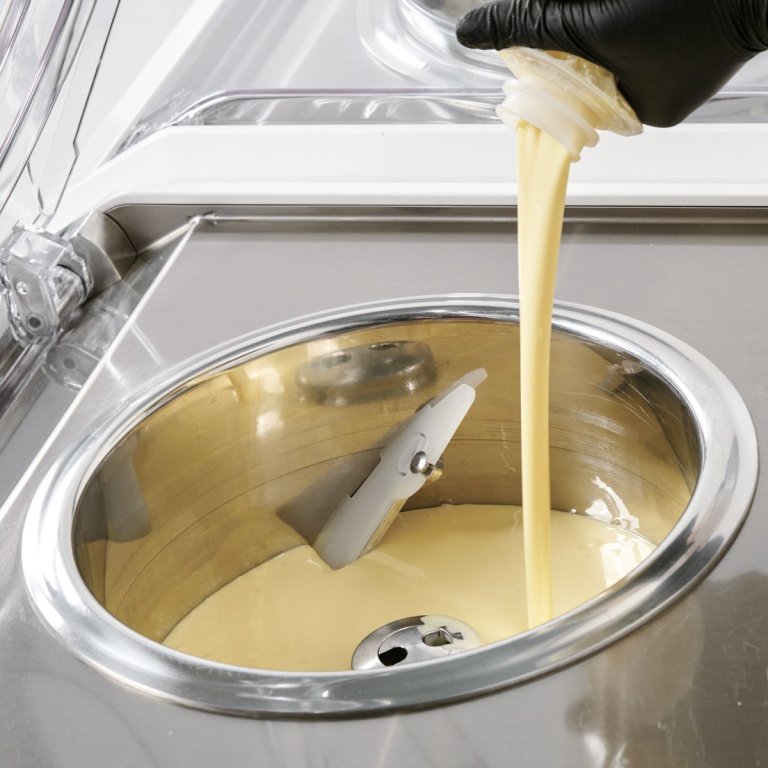

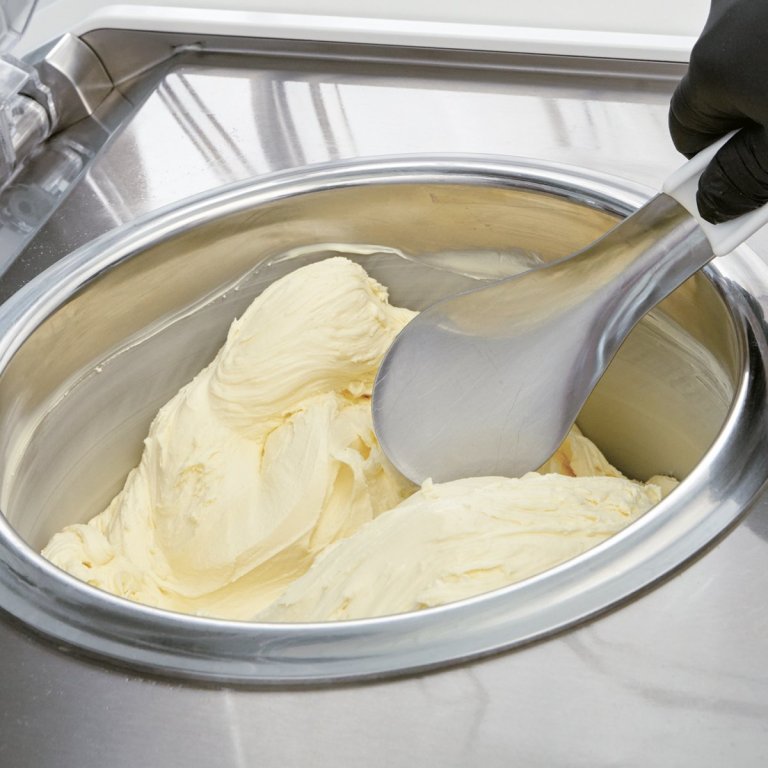

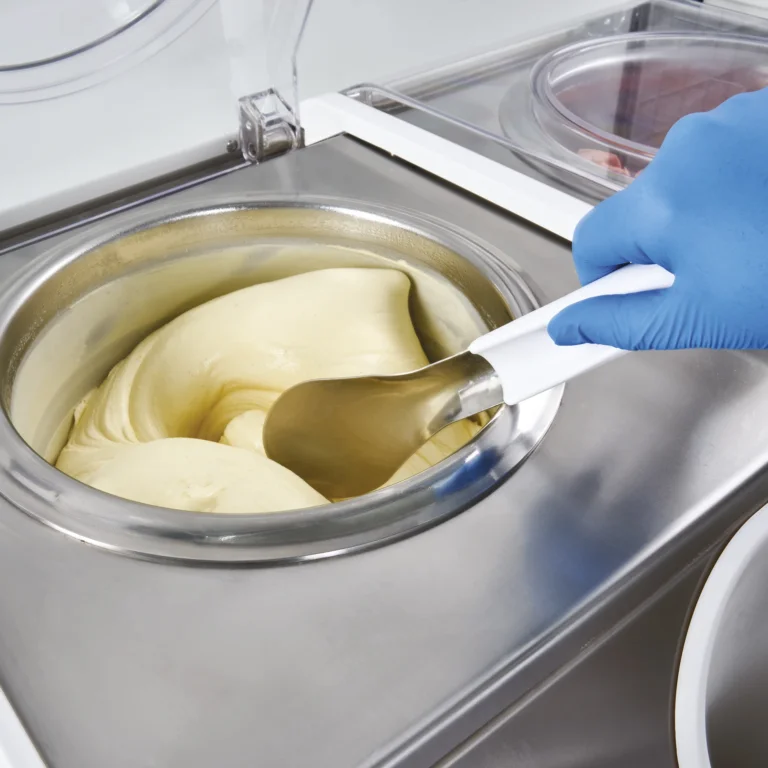

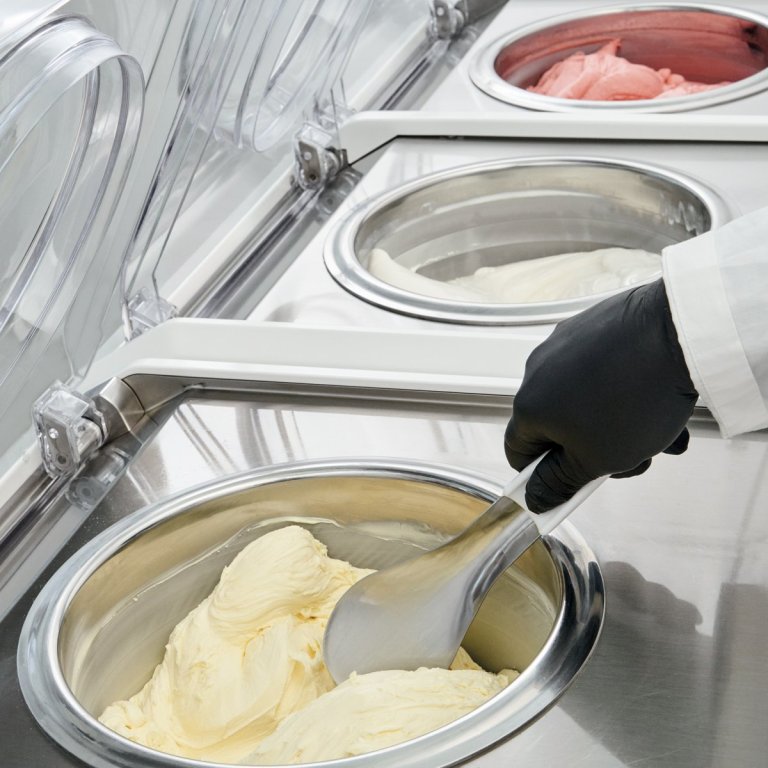

The Synthesis range in photos
Talk to our specialists
Free demo at our Auckland showroom, machine set-up, recipe and menu development and one-on-one training. Call 0508 625 677 or send an enquiry.
