Carpigiani Pastomaster HE
Energy-efficient pasteurisers for up to 60 or 120 litres of mix per cycle. Carpigiani states water savings of up to 30% compared with its RTX line.
Carpigiani Pastomaster HE models
Every model has its own page with full features, specifications and photos. Select a model to see it in detail.
Each Pastomaster HE model

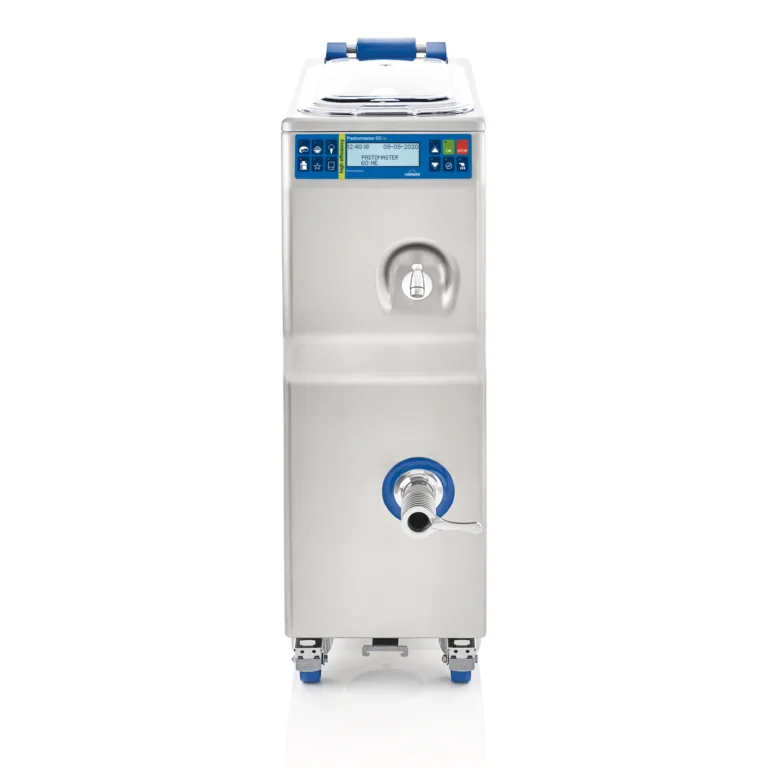

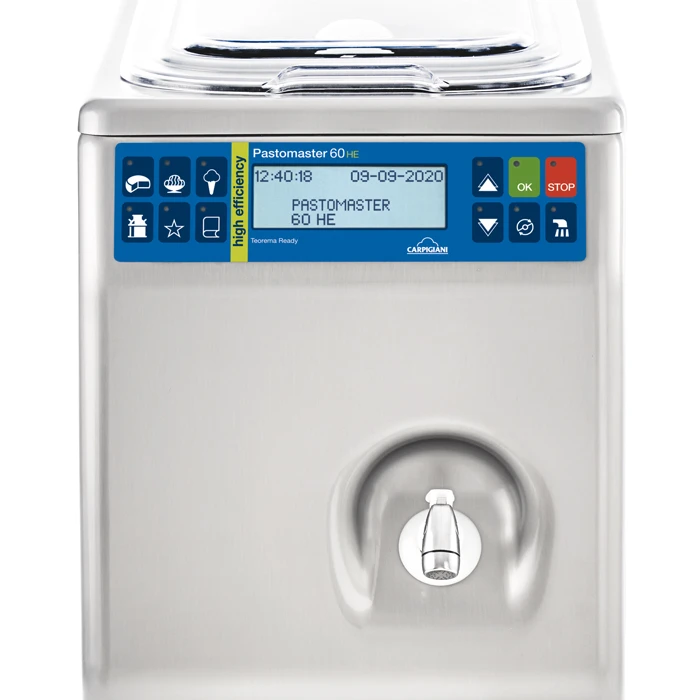

Pastomaster 60 HE
Energy-efficient pasteuriser to pasteurise up to 60 L of mix per production cycle.
Sizes: Pastomaster 60 HE, Pastomaster 60 HE P
Power Supply: 400v / 50hz / 3Ph
Cooling System: Water Cooling
Production Cycle: 60 L / 120 min
Tank Capacity: 15–60 L
Pastomaster 60 HE P
Energy-efficient pasteuriser to pasteurise up to 60 L of mix per production cycle.
Power Supply: 400v / 50hz / 3Ph
Cooling System: Water Cooling
Production Cycle: 60 L / 120 min
Tank Capacity: 15–60 L
Programs (quantity per cycle): Sauce production 15–45 kg; Specialty production 15–45 kg; Yogurt production 15–45 kg
Pastomaster 120 HE
Energy-efficient pasteuriser to pasteurise up to 120 L of mix per production cycle.
Power Supply: 400v / 50hz / 3Ph
Cooling System: Water Cooling
Production Cycle: 120 L / 120 min
Tank Capacity: 30–120 L
Programs (quantity per cycle): Yogurt production 30–90 kg
Sizes within the Pastomaster HE range
Some models come in more than one size. These are the figures for each size.
Pastomaster 60 HE: 2 sizes
| Specification | Pastomaster 60 HE | Pastomaster 60 HE P |
|---|---|---|
| Tank capacity | 15–60 L | 15–60 L |
| Production cycle | 60 L / 120 min | 60 L / 120 min |
| Beater speeds | 7 | 7 |
| Sauces / Specialties / Yoghurt | 15–45 kg | 15–45 kg |
| Power supply | 400 V / 50 Hz / 3 Ph | 400 V / 50 Hz / 3 Ph |
| Rated power input | 7 kW | 11.2 kW |
| Fuse size | 16 A | 20 A |
| Cooling | Water | Water |
| Dimensions (W × D × H) | 35 × 90 × 105 cm | 35 × 90 × 105 cm |
| Net weight | 165 kg | 165 kg |
Pastomaster HE specifications
| Specification | Pastomaster 60 HE | Pastomaster 60 HE P | Pastomaster 120 HE |
|---|---|---|---|
| Sizes | Pastomaster 60 HE, Pastomaster 60 HE P | – | – |
| Power Supply | 400v / 50hz / 3Ph | 400v / 50hz / 3Ph | 400v / 50hz / 3Ph |
| Cooling System | Water Cooling | Water Cooling | Water Cooling |
| Production Cycle | 60 L / 120 min | 60 L / 120 min | 120 L / 120 min |
| Tank Capacity | 15–60 L | 15–60 L | 30–120 L |
| Programs (quantity per cycle) | Sauce production 15–45 kg; Specialty production 15–45 kg; Yogurt production 15–45 kg | Sauce production 15–45 kg; Specialty production 15–45 kg; Yogurt production 15–45 kg | Yogurt production 30–90 kg |
| Motor speed for beater no | 7 | 7 | 7 |
| Dimensions (W x D x H) | 35 x 90 x 105 cm | 35 x 90 x 105 cm | 65 x 90 x 105 cm |
| Net Weight | 165 kg | 165 kg | 269 kg |
| Rated Power Input | – | 11.2 kW | 11.2 kW |
| Fuse Size | – | 20 A | 20 A |
Specifications are listed on each model’s page. Ask our team to confirm the right model for your site.
Talk to our specialists
Free demo at our Auckland showroom, machine set-up, recipe and menu development and one-on-one training. Call 0508 625 677 or send an enquiry.
