Carpigiani Maestro
Combined machines that heat and freeze, for gelato, pastry and chocolate work in one machine.
2 models
Carpigiani Maestro models
Every model has its own page with full features, specifications and photos. Select a model to see it in detail.
Model by model
Each Maestro model

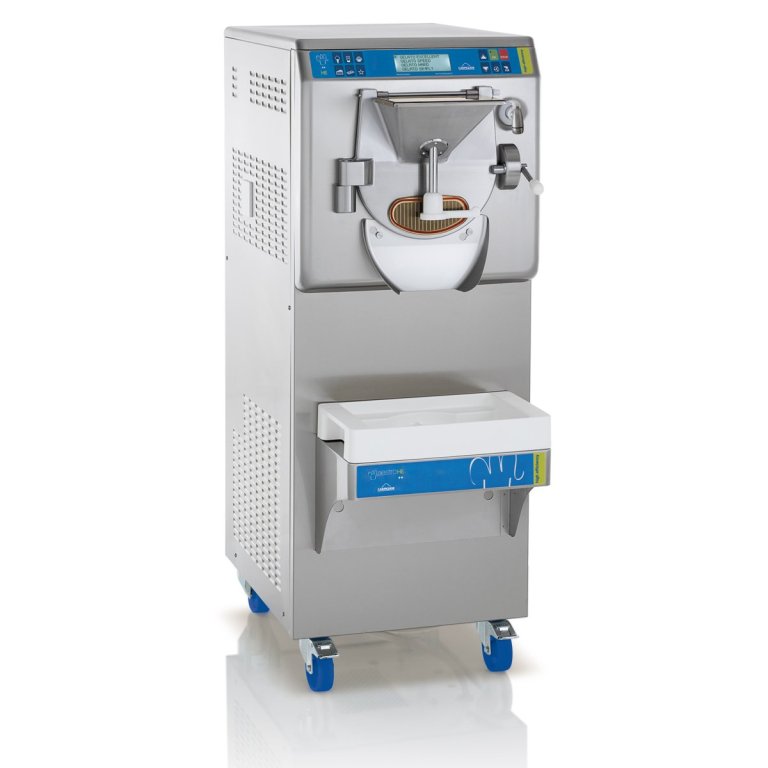

Maestro HE
The batch freezer manages a range of quantities from a minimum of 1.5 kg to a maximum of 7.5 kg per cycle.
Sizes: Maestro★★ HE, Maestro★★★ HE, Maestro★★★★ HE
Power Supply: 400v / 50hz / 3Ph
Cooling System: Water Cooling
Beater: Multispeed
Dimensions (W x D x H): 52 x 65 x 140 cm

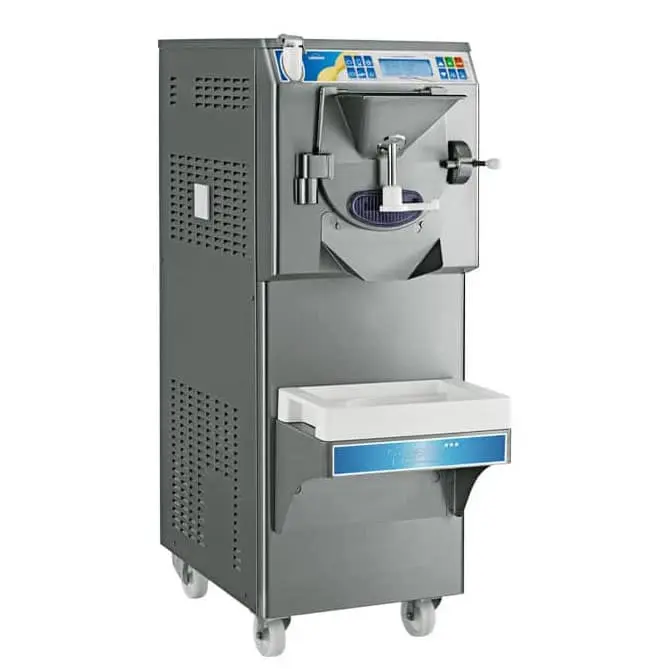

Maestro HCD
With Maestro you can increase productivity while saving energy.
Sizes
Sizes within the Maestro range
Some models come in more than one size. These are the figures for each size.
Maestro HE: 3 sizes
| Specification | Maestro★★ HE | Maestro★★★ HE | Maestro★★★★ HE |
|---|---|---|---|
| Mix added per cycle | 1.5–7.5 kg | 2.5–10.5 kg | 3.5–13 kg |
| Gelato produced per cycle | 2–10 L | 3.5–15 L | 5–19 L |
| Tempered chocolate | 5–10 kg | 7.5–12.5 kg | 10–15 kg |
| Cremolata / Crystal / Slush | 3.5–7.5 kg | 5–10.5 kg | 6–13 kg |
| Topping | 4.5–9 kg | 6–10 kg | 7.5–12 kg |
| Yoghurt | 3–10 kg | 5–12 kg | 7–14 kg |
| Zero+ | 1.5–6.5 kg | 2.5–9.5 kg | 3.5–12 kg |
| Power supply | 400 V / 50 Hz / 3 Ph | 400 V / 50 Hz / 3 Ph | 400 V / 50 Hz / 3 Ph |
| Rated power input | 6.4 kW | 7.6 kW | 9.0 kW |
| Fuse size | 16 A | 20 A | 20 A |
| Cooling | Water | Water | Water |
| Dimensions (W × D × H) | 52 × 65 × 140 cm | 52 × 65 × 140 cm | 52 × 65 × 140 cm |
| Net weight | 280 kg | 320 kg | 350 kg |
Compare
Maestro specifications
| Specification | Maestro HE | Maestro HCD |
|---|---|---|
| Sizes | Maestro★★ HE, Maestro★★★ HE, Maestro★★★★ HE | – |
| Power Supply | 400v / 50hz / 3Ph | – |
| Cooling System | Water Cooling | – |
| Beater | Multispeed | – |
| Dimensions (W x D x H) | 52 x 65 x 140 cm | – |
Specifications are listed on each model’s page. Ask our team to confirm the right model for your site.
